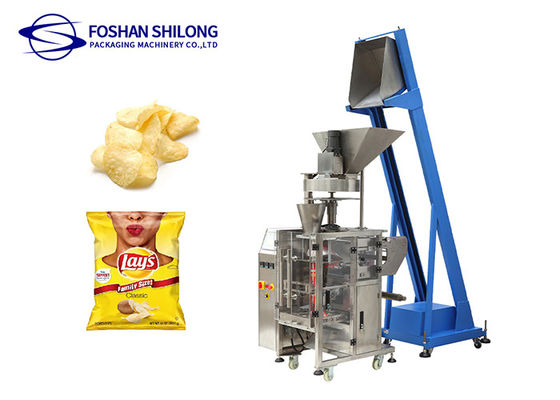

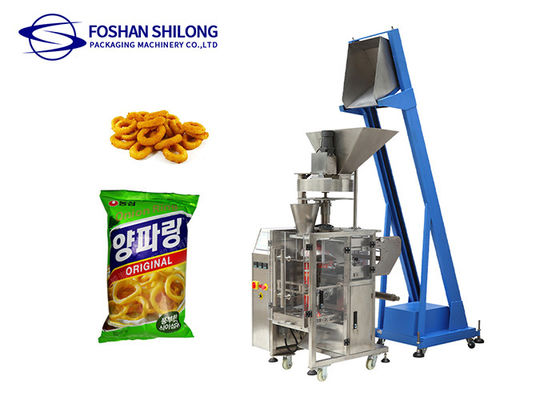

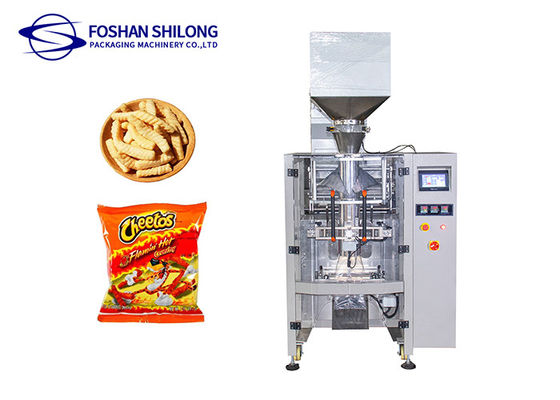

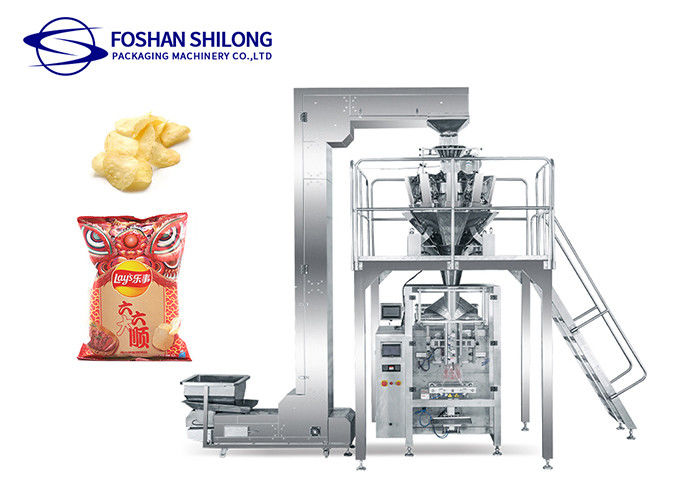

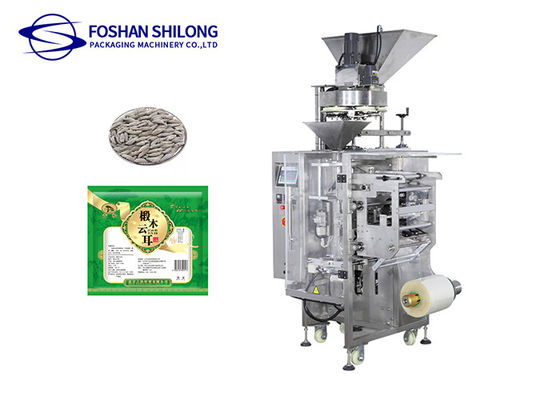

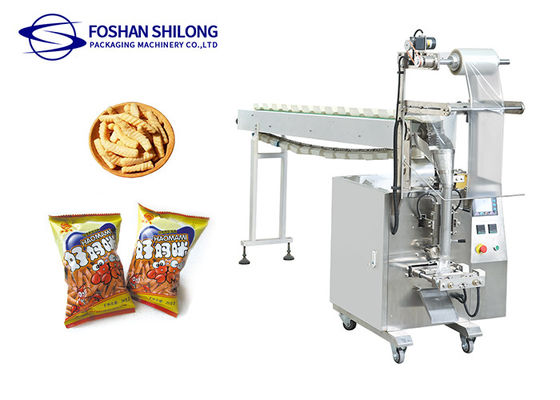

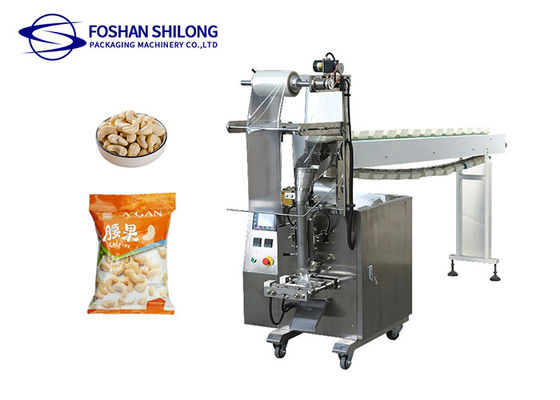

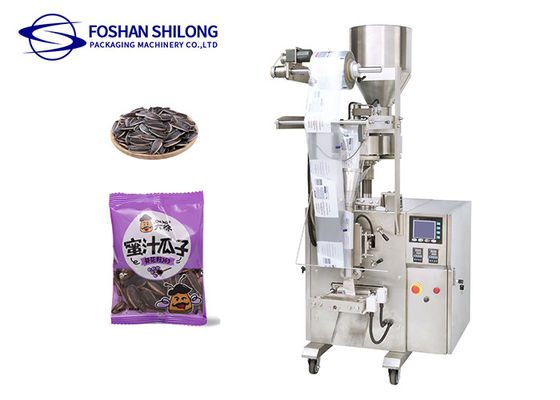

420mm Automatic Granule Packing Machine For Beans Chip Candy

420mm Automatic Granule Packing Machine For Beans Chip Candy

420mm Automatic Granule Packing Machine For Beans Chip Candy
420mm Automatic Granule Packing Machine For Beans Chip Candy
420mm Automatic Granule Packing Machine For Beans Chip Candy
Product Details:
Place of Origin: Foshan
Brand Name: Shilong
Certification: CE
Model Number: SLIV-420 YT
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1740*1300*2600mm
Delivery Time: 15-25/day
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Month
Contact Now
Detailed Product Description
Measurement Method: Standard 10 - Bucket Combination Electronic Scale, 1.6L Hopper Measuring Range: 2500ml ( Subject To Actual Materials )
Packing Speed: 20 - 60 Bag / Min Maximum Width Of Roll Film: 420mm
Bag Size: ( W ) : Width 100 - 200mm ( W ) Mm Length 300mm Sealing Category: Back Seal , Gusset Pillow Bag
Total Power: 3kw Air Pressure And Air Consumption: 0.65Mpa 0.8m3 / Min
Machine Weight: 600kg Machine Size: 1265 ( L ) X 1060 ( W ) X 1600 ( H ) Mm
High Light:

0.8m3/min Granule Packing Machine

,

Automatic Granule Packing Machine

,

Granule Packaging Machine 420mm



Shilong Hot Sale Automatic Granule Packing Machine for Beans Chip Candy



Application


During the packaging process of the vertical packaging machine, the material is fed by the material stretching and feeding device.The plastic film is formed into a cylindrical shape through the film cylinder, and the side is sealed by the heat longitudinal sealing device. The standard photoelectric detection device cuts the length and position of the packaging.



Features

1)English and Man-machine interface, step motor driven,

2) Photoelectric tracking system for precise bag length and position of film.

3) Filling volume and bag length are easy to adjust on the interface without changing mould.

4) Digital temperature controller for vertical and horizontal sealing, intuitive and accurate.

5) No leak with high filling accuracy

6) Easy operation, smooth performance, low noise, compact construction, convenient to maintenance, take up small floor space in high packaging speed and efficiency.

7) The machine is all made of stainless steel S/S304.

8) A big range of packaging film: paper/Poly/cellophane/plated aluminum/BOPP/CPP.





Granule Packaging Machine Specification



Packing Material OPP / CPP OPP / PE NILO / PE PE
Measuring Range (Max) 2500ML
Bag Width 100 - 200mm
Bag Length (max) 300mm
Packing Speed 5 - 60bag / min
Max Width of Roll Film 420mm
Voltage 220VAC / 50HZ
Power 3KW
Product Size 1265L * 1060W * 1600H
Net Weight

400KG

Name 10 Head Weigher Checkered Plate
Model No. SL - 10 - 1
Features

60o steep discharge chute makes sure products discharge is acted smoothly.

Equipped with a especially designed central cone, rotary top cone can dispense the products into each linear feeder pans evenly.

Rotary rollers equipped between each linear feeder pan helps to dispense the long soft products into feed hoppers.

It is suitable for weighing soft and material, such as cheese,jelly candy etc.

Max. Capacity(g) 100 - 1000g
Weighing Accuracy ± 1 - 5g
Max. Weighing Speed 50Bags / Min
Hopper Volume 1.6L
Control Panel 7"LCD Touch Screen
Driving System Step Motor
Power Requirements 220V / 1500W / 50/60HZ / 10A
Dimension(mm) 1620 ( L )  × 1100 ( W )  × 1100 ( H )
Weight 380KG



Name Dip angle style elevator
Model No. SL - 350
Operational Throughput 6 cubic / h
Voltage 220V / 380V
Power 2KW



Name Finished Product Conveyor
Model No. SLIV-1000
Material 304SS
Conveying height 800mm
Throughput 50 - 300mm/s
Power 250W
Dimension 2190L* 437W * 1050H





420mm Automatic Granule Packing Machine For Beans Chip Candy 0
