Since 2006 Professional Manufacturer Of Packing Machinery
 |
| Place of Origin: | Foshan |
| Brand Name: | Shilong |
| Certification: | CE |
| Model Number: | SLIV-420 YT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1740*1300*2600mm |
| Delivery Time: | 15-25/day |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 Set/Month |
| Measurement Method: | Standard 10 - Bucket Combination Electronic Scale, 1.6L Hopper | Measuring Range: | 2500ml ( Subject To Actual Materials ) |
|---|---|---|---|
| Packing Speed: | 20 - 60 Bag / Min | Maximum Width Of Roll Film: | 420mm |
| Bag Size: | ( W ) : Width 100 - 200mm ( W ) Mm Length 300mm | Sealing Category: | Back Seal , Gusset Pillow Bag |
| Total Power: | 3kw | Air Pressure And Air Consumption: | 0.65Mpa 0.8m3 / Min |
| Machine Weight: | 600kg | Machine Size: | 1265 ( L ) X 1060 ( W ) X 1600 ( H ) Mm |
| High Light: | 600kg multi head pouch packing machine,Biscuits multihead weigher packing machine,Chips 10 head multihead weigher |
||

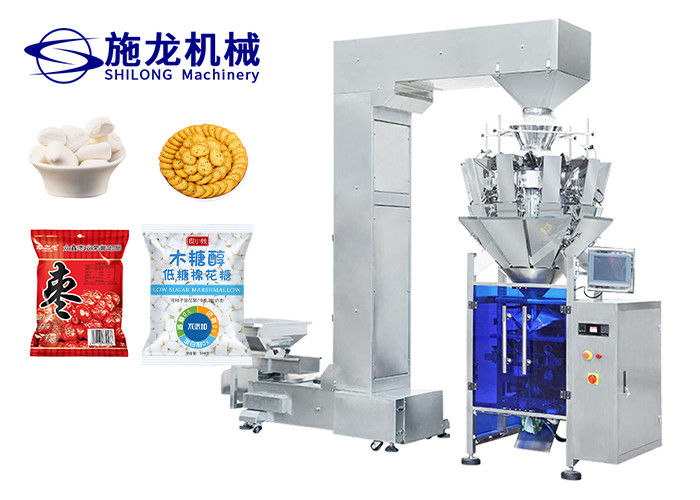

Weigher Packing Machine Back Seal Biscuits Potato Chips Pouch
Features
1. Chinese or English display(language can be set according to customer requirements);
2. Easy operation, instructions and working conditions clearly shown on touch screen;
3. PLC provides stable working programme;
4. Can preset 10 formulas, easier for quick changing for product package;
5. Intelligent temperature control, temperature difference within 2℃;
6. Error correction and sealing and cutting position adjustment can be managed on touch screen without turning off the machine;
7. Packing more solid with the tooth mode pattern type of sealing. Straight lines, twill, reticulation and more sealing modes available；
8. CE installation standard adoptable, electrical box protection standard can reach IP65;
9. The machine is capable of making many types of bags, such as back sealing pouch, triangle bag, hand bag, self support bag, die-cut bag and three-dimensional bag;
10. Special designed shape of punching hole service available;
11. To highlight your bag shape, we specially install dedicated crimping device.
12. Overweight products can affect the effect of packaging, so we have a material output device which will prop heavy products against it till their packaging is done;
13. If your product is too fluffy to pack in small bag, we have a rocking equipment for you；
14. If your packing film material is PE with single layer, you can also select special sealing devices for PE film.
Granule Packaging Machine Specification
| Packing Material | OPP / CPP OPP / PE NILO / PE PE |
| Measuring Range (Max) | 2500ML |
| Bag Width | 100 - 200mm |
| Bag Length (max) | 300mm |
| Packing Speed | 5 - 60bag / min |
| Max Width of Roll Film | 420mm |
| Voltage | 220VAC / 50HZ |
| Power | 3KW |
| Product Size | 1265L * 1060W * 1600H |
| Net Weight |
400KG |
| Name | 10 Head Weigher Checkered Plate |
| Model No. | SL - 10 - 1 |
| Features |
60o steep discharge chute makes sure products discharge is acted smoothly. Equipped with a especially designed central cone, rotary top cone can dispense the products into each linear feeder pans evenly. Rotary rollers equipped between each linear feeder pan helps to dispense the long soft products into feed hoppers. It is suitable for weighing soft and material, such as cheese,jelly candy etc. |
| Max. Capacity(g) | 100 - 1000g |
| Weighing Accuracy | ± 1 - 5g |
| Max. Weighing Speed | 50Bags / Min |
| Hopper Volume | 1.6L |
| Control Panel | 7"LCD Touch Screen |
| Driving System | Step Motor |
| Power Requirements | 220V / 1500W / 50/60HZ / 10A |
| Dimension(mm) | 1620 ( L ) × 1100 ( W ) × 1100 ( H ) |
| Weight | 380KG |
| Name | Dip angle style elevator |
| Model No. | SL - 350 |
| Operational Throughput | 6 cubic / h |
| Voltage | 220V / 380V |
| Power | 2KW |
| Name | Finished Product Conveyor |
| Model No. | SLIV-1000 |
| Material | 304SS |
| Conveying height | 800mm |
| Throughput | 50 - 300mm/s |
| Power | 250W |
| Dimension | 2190L* 437W * 1050H |
