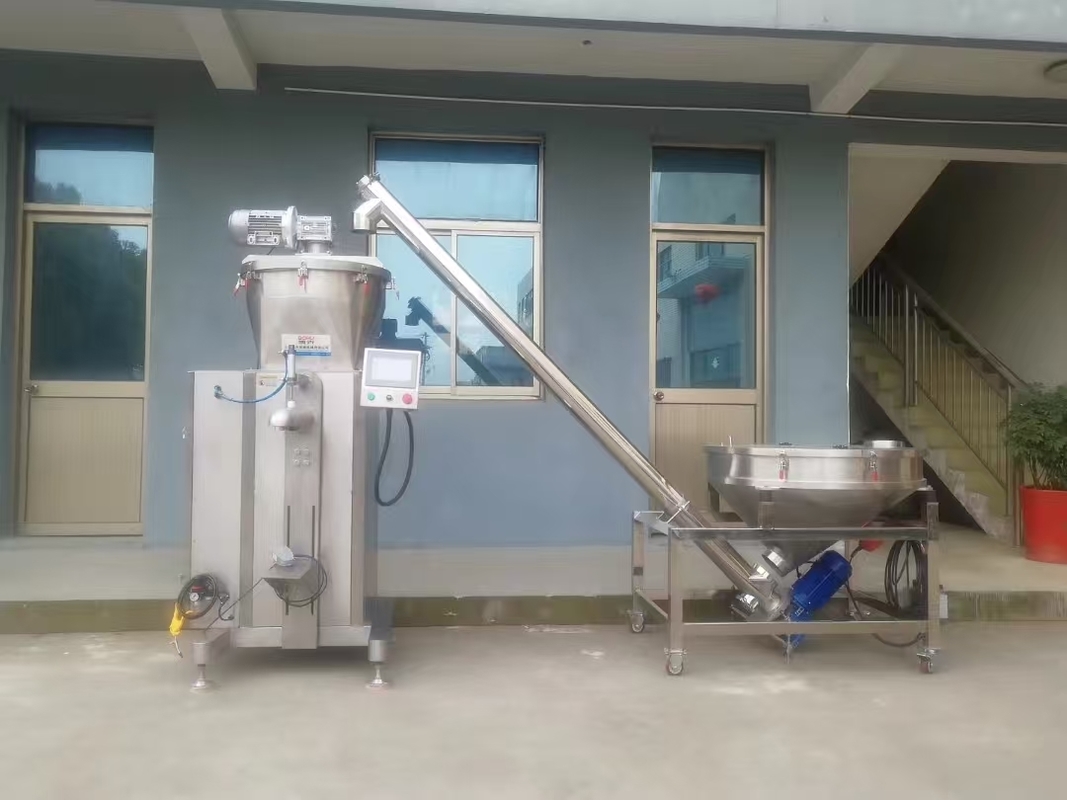

Automatic Big Bag Packing Machine

Name: Automatic Big Bag Packing Machine
Brand: Suzhou Bomenghui Machinery Equipment Co., Ltd.
SKU: BH-FKD25
Price: 13000 USD
Availability: InStock

Product Details:

Place of Origin:	Shanghai
Brand Name:	BMH
Certification:	ISO9001
Model Number:	BH-FKD25

Detail Information

Place of Origin:

Shanghai

Brand Name:

BMH

Certification:

ISO9001

Model Number:

BH-FKD25

Material:

Stainless Steel

Packing Speed:

0.5-2Bags Per Min

Packing Weight:

5-25kg

Feeding Mode:

Vibrating Feed

Voltage:

380 220V/50HZ

Packing Accuracy:

±0.1-0.3%

Measuring Mode:

Double Vibrating Mode

Highlight:

High Light

Highlight:

automatic big bag packing machine

granule packing machine with warranty

industrial big bag filling machine

Trading Information

Minimum Order Quantity:

Price:

USD13000

Packaging Details:

Wooden boxes

Delivery Time:

30 days

Payment Terms:

T/T

Supply Ability:

30+Unit+30

Product Description

Automatic Big Bag Packing Machine

Product Specifications

Material

Stainless Steel

Packing speed

0.5-2Bags per min

Packing weight

5-25kg

Feeding mode

Vibrating feed

Voltage

380 220V/50HZ

Packing Accuracy

±0.1-0.3%

Measuring mode

Double vibrating mode

Product Description

Automatic Big Bag Packing Machine is designed for efficient and precise packaging operations.

Key Features

The packaging machine can automatically complete the work of feeding, measuring, stirring, unloading, dust extraction, vibration (optional) and so on.
Touch screen control, simple and convenient operation, can store ten recipes, driven by Taiwan-made servo motor, the screw speed is divided into 3 sections (1000 turn-10 turn one-key adjustment), so as to ensure speed and accuracy.
The work process is automatic feeding (optional), artificial bagging the rest of the work: feeding, metering, stirring, unloading, dust extraction, vibration (optional), etc. are all automatically completed according to the set program.
It has the characteristics of perfect detection and control functions, reliable work, high measurement accuracy, simple operation and convenient maintenance.
This machine can also be customized for you according to your requirements.

Technical Parameters

Model	BH-FKD25
Packing accuracy	±0.1-0.3% (according to material and packing weight)
Packing speed	0.5-2 bags/min (according to material and bag mouth decide)
Weighing mode	Pulse screw weighing measurement (servo motor)
Packing weight	5-25kg
Bag holder	Standard
Stirring	Standard
Voltage/power	380 220V/50Hz
Size	L1500mmW1000mmH1800mm
Weight	200KG

Frequently Asked Questions

Q: What is the maximum output per hour?

A: Depending on material characteristics and required accuracy, it can pack approximately 0.5-2bags per min.

Q: How is the high accuracy achieved?

A: Precision is ensured by the electronic weighing feedback system combined with the three-stage servo motor control of the vertical screw feeder, allowing for fast coarse feed and slow fine feed/cut-off.

Q: Is it suitable for very fine or aerated powders?

A: Yes, the vertical screw feeding system and controlled feed stages are specifically designed to handle challenging powders, including fine and aerated types, with minimized dust and consistent flow. Accuracy might vary slightly based on extreme flow characteristics.

Q: How easy is it to clean between different powder products?

A: The stainless steel construction and design of the screw and hopper facilitate easy cleaning. The vertical screw design is inherently easier to clean than auger systems.

Q: What sealing options are compatible?

A: The machine outputs filled bags ready for various sealing methods, including sewing (industrial, overlock, folding) or heat sealing (pneumatic, 3-in-1, ink wheel).
