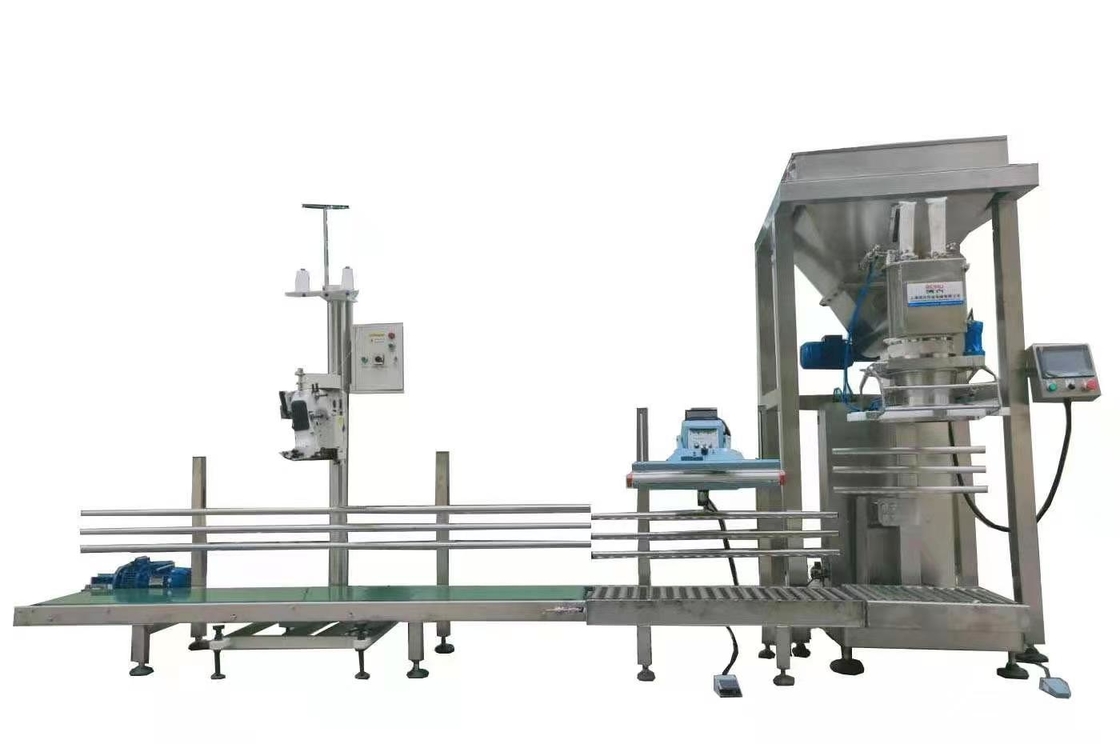

Semi Automatic Auger Powder Filling Machine 5-25kg 10-50kg

Name: Semi Automatic Auger Powder Filling Machine 5-25kg 10-50kg
Brand: Suzhou Bomenghui Machinery Equipment Co., Ltd.
SKU: BH-SLX25
Price: 13000 USD
Availability: InStock

Product Details:

Place of Origin:	Shanghai
Brand Name:	BMH
Certification:	ISO9001
Model Number:	BH-SLX25

Detail Information

Place of Origin:

Shanghai

Brand Name:

BMH

Certification:

ISO9001

Model Number:

BH-SLX25

Material:

Stainless Steel

Packing Speed:

2-4 Bags Per Min

Packing Weight:

5-25kg

Feeding Mode:

Double Screw Feeding

Voltage:

380 220V/50HZ

Packing Accuracy:

±0.2%

Measuring Mode:

Double Vibrating Mode

Highlight:

High Light

Highlight:

25kg semi automatic auger powder filling machine

5kg semi automatic auger powder filling machine

50kg semi automatic auger filling machine

Trading Information

Minimum Order Quantity:

Price:

USD13000

Packaging Details:

Wooden boxes

Delivery Time:

30 days

Payment Terms:

T/T

Supply Ability:

30+Unit+30

Product Description

Semi Automatic Auger Powder Filling Machine 5-25kg 10-50kg

Product Specifications

Attribute	Value
Material	Stainless Steel
Packing speed	2-4 Bags per min
Packing weight	5-25kg
Feeding mode	Double screw Feeding
Voltage	380 220V/50HZ
Packing Accuracy	±0.2%
Measuring mode	Double vibrating mode

Product Description

Semi automatic Auger Powder Filling Machine

Key Features

Adopt a new type of international popular production control system: high-precision and high-speed dedicated metering control instrument, which has the characteristics of strong function, high reliability, greater flexibility and scalability, and is fully adapted to the repeated highly continuous production process.
It has the functions of overshoot suppression, automatic correction of fall, automatic alarm of out of tolerance, etc., the frequency converter controls the screw, and the speed is adjusted up on the touch screen.
This machine is a new type of mechanical and electrical integration equipment. It adopts computer control technology and imported Toledo high-precision weighing sensor. It is made of 304 in contact with materials (customizable 316L stainless steel).
The size of the bag holder can be changed, and it can adapt to various sizes of packaging bags, explosion-proof electric boxes, explosion-proof motors, and explosion-proof touch screen designs to meet the high-risk chemical industry.
There are screw feeder, U-shaped screw feeder, vacuum feeder, belt feeder, bucket feeder and so on to choose from.
There are industrial sewing machine, overlock sewing machine, folding sewing machine, pneumatic heat sealing machine, 3 in 1 heat sealing machine, ink wheel sealing machine, etc. to choose from.

Technical Specifications

Measurement Method	Weighin Type (Packing container weighing)
Filling Mode	Double Screw Feeding
Packing mode	5-25kg,10-50kg
Packing accuracy	±0.2%
Packaging Accuracy	2-4 bags/min
Power supply	380 220V/50Hz
Air Consumption	6kg/m2 0.2 m3/min
Total power	3kw
Machine Size	1000mm×1200mm×2400mm

Frequently Asked Questions (FAQ)

Q: What is the maximum output per hour?

A: Depending on material characteristics and required accuracy, it can pack approximately 2-4 bags per min

Q: How is the high accuracy achieved?

A: Precision is ensured by the electronic weighing feedback system combined with the three-stage servo motor control of the vertical screw feeder, allowing for fast coarse feed and slow fine feed/cut-off.

Q: Is it suitable for very fine or aerated powders?

A: Yes, the vertical screw feeding system and controlled feed stages are specifically designed to handle challenging powders, including fine and aerated types, with minimized dust and consistent flow. Accuracy might vary slightly based on extreme flow characteristics.

Q: How easy is it to clean between different powder products?

A: The stainless steel construction and design of the screw and hopper facilitate easy cleaning. The vertical screw design is inherently easier to clean than auger systems.

Q: What sealing options are compatible?

A: The machine outputs filled bags ready for various sealing methods, including sewing (industrial, overlock, folding) or heat sealing (pneumatic, 3-in-1, ink wheel).
