Since 2006 Professional Manufacturer Of Packing Machinery
 |
| Place of Origin: | Foshan |
| Brand Name: | Shilong |
| Certification: | CE |
| Model Number: | SL-50GZ |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 15-25/day |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 Set/Month |
| Measurement Accuracy: | Defect Rate ≤ 0.5 - 1 % Depends On Packaging Speed And Material Weight | Measuring Range: | 4000ML |
|---|---|---|---|
| Bag Size: | W :150 - 250mm L : 400 Mm | Packing Speed: | 5 - 50 ( Bags / Min ) |
| Max Film Width: | 520mm | Voltage: | 220V AC / 50HZ |
| Power: | 4kW | Weight: | 450kg |
| High Light: | 5.7in semi automatic bottle filling machine,4000ML semi automatic weighing machine,SUS 316 semi automatic auger filler |
||

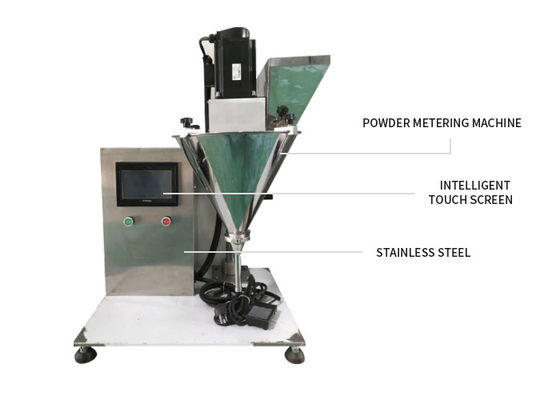

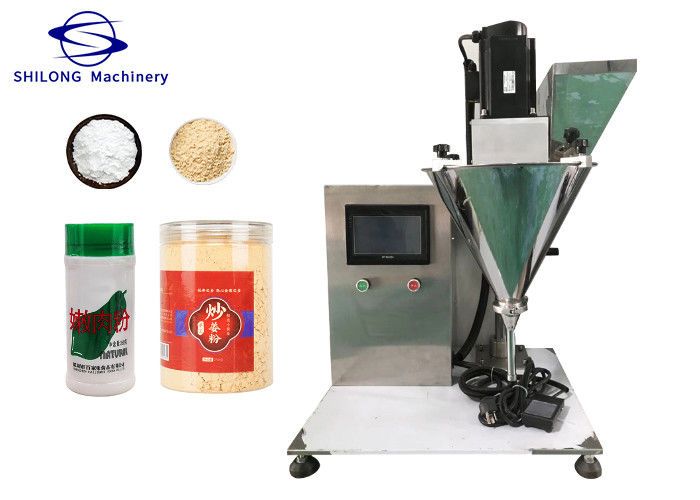

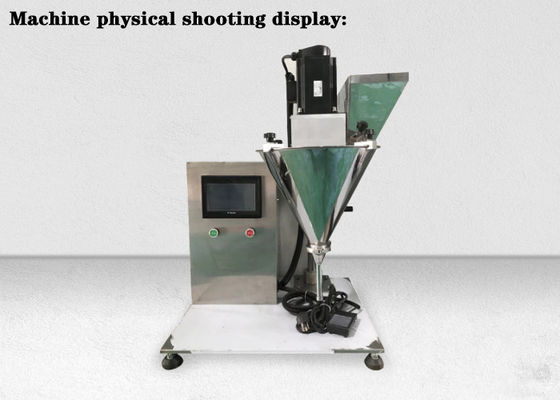

Semi Automatic Auger Filler Coffee Chili Spice Powder Filling Machine
Desktop Type Powder auger Filling Machine
This semi automatic weighing type powder bottle filling machine is for quantitative packaging. This machine application the latest technology, more reasonable, more concise, and more robust. The material feed into the tank, measuring and filling all automatically complete, suitable for filling powder and granular materials, such as pharmaceuticals powder, milk powder, protein powder, chicken powder, coffee powder, milk powder, solid drink, grape sugar, rice and so on.
Standard Features
1. This machine is mini set which could be placed on desktop.
2. Control system: by PLC&5.7 inch color touch screen.

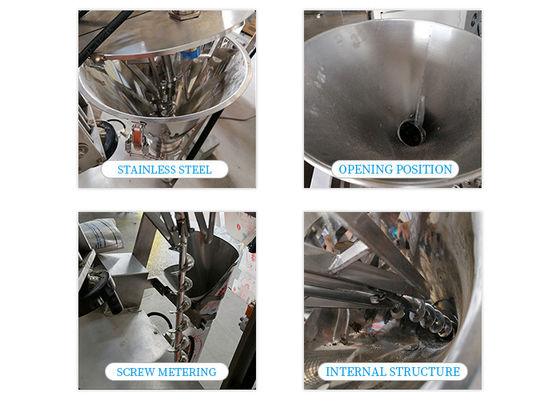

3. Metering screw driven by servo motor, particularly suitable for situation with requirements. It is of high accuracy, high speed and more stability.
4. Contact parts could be SUS 316 as optional.
5. 20 sets of specifications are available for pre-set.
Technology Parameters
1. This powder packing machine is integrated with machine, electricity, light and instrument. It is controlled by single chip computer. It has the functions of automatic quantification, automatic filling, automatic adjustment of measurement error and so on.
2. Stepping motor and electronic weighing technology,fast speed and high precision
3. The same quantitative packaging machine can be packed 5-5000g by adjusting and replacing filling parts of different specifications with keyboard of electronic scale.
4. Errors caused by material specific gravity and material level change can be automatically tracked and corrected.
Semi-automatic powder filling machine Specification
| Measurement accuracy | Defect rate ≤ 0.5 - 1 % depends on packaging speed and material weight |
| Measuring range | 4000ML |
| Bag size | W :150 - 250mm L : 400 mm |
| Packing speed | 5 - 50 ( bags / min ) |
| Max film width | 520mm |
| Voltage | 220V AC / 50HZ |
| Power | 4kW |
| Weight | 450kW |
