Hanging Ear Drip Coffee Automatic Tea Bag Packing Machine 3 Side Seal 50HZ PID

Hanging Ear Drip Coffee Automatic Tea Bag Packing Machine 3 Side Seal 50HZ PID

  • Hanging Ear Drip Coffee Automatic Tea Bag Packing Machine 3 Side Seal 50HZ PID
  • Hanging Ear Drip Coffee Automatic Tea Bag Packing Machine 3 Side Seal 50HZ PID
  • Hanging Ear Drip Coffee Automatic Tea Bag Packing Machine 3 Side Seal 50HZ PID
  • Hanging Ear Drip Coffee Automatic Tea Bag Packing Machine 3 Side Seal 50HZ PID
Hanging Ear Drip Coffee Automatic Tea Bag Packing Machine 3 Side Seal 50HZ PID
Product Details:
Place of Origin: China
Brand Name: Shilong
Certification: CE
Model Number: SL-181
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 15 - 25 / day
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set / Month
Contact Now
Detailed Product Description
Sealing Method: Ultrasonic Sealing Inner Bag Sealing Form: Three Side Seal
Outer Bag Sealing Form: Three Side Seal Sealing And Cutting Form: Electric Pulse Sealing And Cutting Method , Ultrasonic Fusion Cutting And Heat Sealing
Measuring Range: 5 - 12g / Bag ( Special Specifications Can Be Ordered Separately ) Production Capacity: 30 - 50 Bags / Minute
Inner Bag Size: Length 50 - 75 Mm ; Width 50 - 75 Mm ( Special Specifications Can Be Ordered Separately ) Outer Bag Size: Length 85 - 120㎜ ; Width 75 - 95㎜special Specifications Can Be Ordered Separately)
Input Power: 220V / 50HZ Single Phase Total Power: 3.7kw
High Light:

PID automatic tea bag packing machine

,

50HZ 3 side seal packaging machine

,

Hanging Ear drip coffee bag packing machine



Automatic Hanging Ear Sachet Filter Drip Coffee Bag Packing Machine





Main Features



1. The outer sealing paper is controlled by a stepping motor, and the bag length is stable and the positioning is accurate;
2. Using PID to adjust the temperature controller, the temperature control is more accurate;
3. The PLC is used to control the movement of the whole machine, and the man-machine interface is displayed, which is convenient to operate;
4. All parts that can be contacted are made of SUS304 stainless steel to ensure the product is hygienic and reliable;
5. Some working cylinders use original imported parts to ensure their accuracy and stability;
6. The machine attachment device can complete functions such as flat cutting, date printing, and easy tearing;
7. Ultrasonic and heat-sealing forms can achieve straight-line cuts, saving the internal filling space of the lugs, reaching 12g packaging capacity;
8. Ultrasonic sealing is suitable for cutting all non-woven packaging materials, and the cutting success rate is close to 100%;
9. The equipment can be equipped with nitrogen filling device, date printing device and stirring device.





The main function


1. Using PLC to control the action of the whole machine, display on the man-machine interface, easy to operate;
2. All accessible material parts are made of SUS304 stainless steel to ensure the sanitation and reliability of the product;
3. Adopt air cylinder bag clamping mechanism to make the inner bag cutting and sealing more straight and beautiful;
4. Ultrasonic sealing is suitable for cutting all non-woven packaging materials, and the cutting success rate is close to 100%;
5. High-precision electromechanical system with more stable performance.





Hanging Ear Coffee Packaging Machine Specification



Sealing method Ultrasonic sealing
Inner bag sealing form Three side seal
Outer bag sealing form Three side seal
Sealing and cutting form Electric pulse sealing and cutting method, ultrasonic fusion cutting and heat sealing
Measuring range 5 - 12g / bag ( special specifications can be ordered separately )
Production capacity 30 - 50 bags / minute
Inner bag size Length 50 - 75 mm ; width 50 - 75 mm ( special specifications can be ordered separately )
Outer bag size Length 85 - 120㎜; width 75 - 95mm(special specifications can be ordered separately )
Input power 220V / 50HZ single phase
Total power 3.7kw

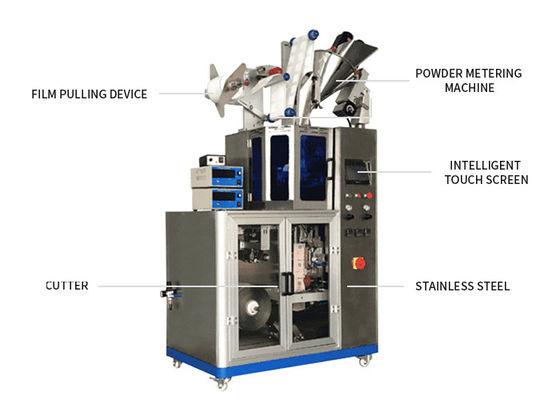

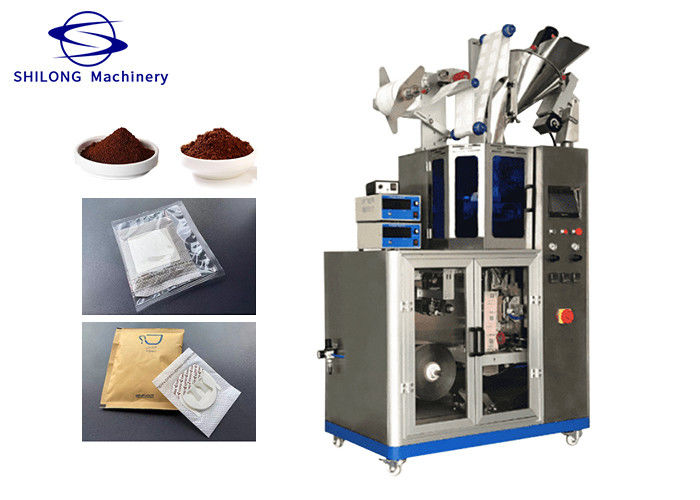

Hanging Ear Drip Coffee Automatic Tea Bag Packing Machine 3 Side Seal 50HZ PID 0

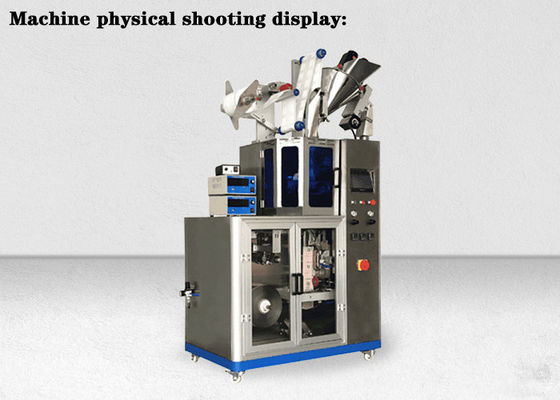

Hanging Ear Drip Coffee Automatic Tea Bag Packing Machine 3 Side Seal 50HZ PID 1
