Since 2006 Professional Manufacturer Of Packing Machinery
 |
| Place of Origin: | Foshan |
| Brand Name: | Shilong |
| Certification: | CE |
| Model Number: | SLIV-420 YT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1740*1300*2600mm |
| Delivery Time: | 15-25/day |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 Set/Month |
| Measurement Method: | Standard 10 - Bucket Combination Electronic Scale, 1.6L Hopper | Measuring Range: | 2500ml ( Subject To Actual Materials ) |
|---|---|---|---|
| Packing Speed: | 20 - 60 Bag / Min | Maximum Width Of Roll Film: | 420mm |
| Bag Size: | ( W ) : Width 100 - 200mm ( W ) Mm Length 300mm | Sealing Category: | Back Seal , Gusset Pillow Bag |
| Total Power: | 3kw | Air Pressure And Air Consumption: | 0.65Mpa 0.8m3 / Min |
| Machine Weight: | 600kg | Machine Size: | 1265 ( L ) X 1060 ( W ) X 1600 ( H ) Mm |
| High Light: | Back Sealing Granule Packing Machine,10 Bucket Granule Packing Machine,1.6L Hopper Granule Packaging Machine |
||

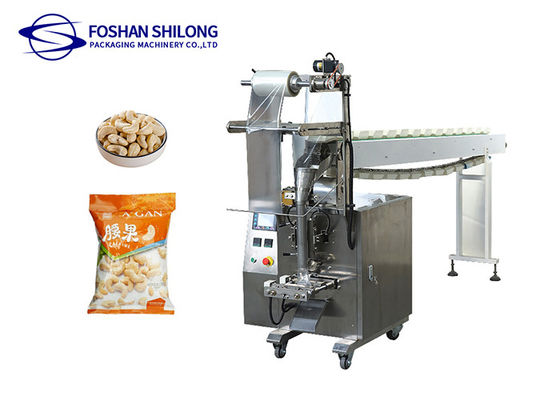

Factory Wholesale Full Automatic Beans Sugar Rice Granule Packing Machine
Application
Main feature
1.Low cost high gain, high speed and efficiency.
2.The whole system is linkage control, automatic feeding, stop working without materials.
3.The contact parts with food is made of 316# high quality stainless steel, it will never get rust.
4. minimize the loss with complete automatic warn protection function;
5. the way of bag making: the machine can make pillow-type bag and standing bag according to customer's requirements.
Granule Packaging Machine Specification
| Packing Material | OPP / CPP OPP / PE NILO / PE PE |
| Measuring Range (Max) | 2500ML |
| Bag Width | 100 - 200mm |
| Bag Length (max) | 300mm |
| Packing Speed | 5 - 60bag / min |
| Max Width of Roll Film | 420mm |
| Voltage | 220VAC / 50HZ |
| Power | 3KW |
| Product Size | 1265L * 1060W * 1600H |
| Net Weight |
400KG |
| Name | 10 Head Weigher Checkered Plate |
| Model No. | SL - 10 - 1 |
| Features |
60o steep discharge chute makes sure products discharge is acted smoothly. Equipped with a especially designed central cone, rotary top cone can dispense the products into each linear feeder pans evenly. Rotary rollers equipped between each linear feeder pan helps to dispense the long soft products into feed hoppers. It is suitable for weighing soft and material, such as cheese,jelly candy etc. |
| Max. Capacity(g) | 100 - 1000g |
| Weighing Accuracy | ± 1 - 5g |
| Max. Weighing Speed | 50Bags / Min |
| Hopper Volume | 1.6L |
| Control Panel | 7"LCD Touch Screen |
| Driving System | Step Motor |
| Power Requirements | 220V / 1500W / 50/60HZ / 10A |
| Dimension(mm) | 1620 ( L ) × 1100 ( W ) × 1100 ( H ) |
| Weight | 380KG |
| Name | Dip angle style elevator |
| Model No. | SL - 350 |
| Operational Throughput | 6 cubic / h |
| Voltage | 220V / 380V |
| Power | 2KW |
| Name | Finished Product Conveyor |
| Model No. | SLIV-1000 |
| Material | 304SS |
| Conveying height | 800mm |
| Throughput | 50 - 300mm/s |
| Power | 250W |
| Dimension | 2190L* 437W * 1050H |
