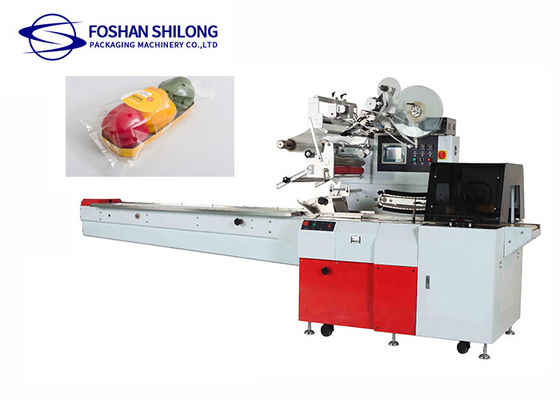

Fruit And Vegetable Tray Horizontal Packing Machine Automatic 20-180bag/Min

Fruit And Vegetable Tray Horizontal Packing Machine Automatic 20-180bag/Min

  • Fruit And Vegetable Tray Horizontal Packing Machine Automatic  20-180bag/Min
Fruit And Vegetable Tray Horizontal Packing Machine Automatic  20-180bag/Min
Product Details:
Place of Origin: Foshan
Brand Name: Shilong
Certification: CE
Model Number: KCH-600W
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: L3700 * W670 * H1320
Delivery Time: 15 - 25 / day
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set / Month
Contact Now
Detailed Product Description
Model: KCH-600W Film Width: Max.600mm
Bag Length: 120-600mm Bag Width: 50-280mm
Maximum Height Of Material: Max.120mm Film Roll Diameter: Max.320mm
Packaging Speed: 20-180bag / Min Power: 220V50/60HZ 2.6KW
Machine Size: 4380*870*1500mm Weight: 1160kg
High Light:

280mm Bags Horizontal Packing Machine

,

50HZ Horizontal Packaging Machine

,

600mm Horizontal Packing Machine



Automatic Fruit And Vegetable Tray Horizontal Packing Machine





Application



Suitable for the solid object with regular form. Such as biscuit, bread, sweet, commodities and industrial parts and so on. The bulk cargos is put in a box and form a regular object, then to be packed.





Structure function



1 . Touching controller with person-machine interface, parameter enacted quickly, high speed and high efficiency

2 . Adopting the tracing technology through photoelectricity, with digital input and sealing and cutting position nicely.

3 . Diagnosing the troublesome and indicating to give an alarm.

4 . Constant-temperature adjusting, brainpower controlling and being suitable for all kinds of packaging materials.

5 . Controlled by Double frequency conversion, the bag length can be cut with the enacting To finish by one step, saving time and saving film.





Horizontal Packing Machine Specification



Model
SL - 250X
Film width
Max.240mm
Bag length
90 - 280mm
Bag width
30 - 110mm
Product height
Max.55mm
Film roll diameter
Max.320mm
Packing speed
40 - 180bag / min
Power
220v,50/60Hz,2.8KV
Machine size
( L )3700 × ( W ) 670 × ( H )1320
Machine weight
600kg
Optional equipment
1. Code applying machine
2. Line sealing wheel
3. More terminal seaing mould





Fruit And Vegetable Tray Horizontal Packing Machine Automatic  20-180bag/Min 0
