Place of Origin: | Foshan |
Brand Name: | Shilong |
Certification: | CE |
Model Number: | SL-V1025 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | 1500*800*1550mm |
Delivery Time: | 100 Set/Month |
Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 15-25/day |
Packing Speed: | 5 - 15 Ppm | Package Weight: | 1000 - 6000g |
---|---|---|---|
Bag Width Range: | 150 - 250mm | Bag Length Range: | 200 - 600mm |
Voltage: | 3x380V + N / 50Hz | Power: | 1.5Kw + 1.5kw |
Air Source: | 0.6Mpa 0.3M3 / Min | Packing Material: | PA + PE |
Whole Machine Weight: | 650kg | Dimensions: | 1500 * 800 * 1550mm |
High Light: | 0.6Mpa Sauce Packing Machine,Sticky Sauce Packing Machine,1.5kw Automatic Liquid Packing Machine |

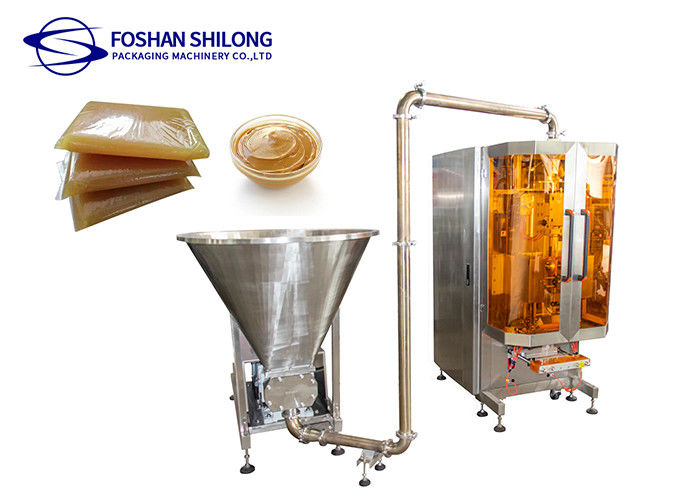

Easy to operate sachet sticky soy sauce packing machine
Scope of application
Widely applied for food, medicine, hand sanitizer chemical liquid products such as ketchup, flavoring, sauce, pasty, shampoo, cream, body wash liquid and so on.
Machine Features
1 . Brand new design with bright appearance, reasonable structure and advanced technology.
2 . Digital screen display with numerical setting and flexible operation.
3 . Imported PLC control system and color touching screen enable easy and efficient operation.
4 . Imported servo film driving system and color sensor enable accurate position, beautiful packaging and excellent performance.
5 . PID independent control of temperature, more suitable for different packaging material.
6 . Multiple automatic alarming functions make the, loss to the minimum.
7 . Dual encoders enable more stable performance.
8 . Diversified bag-shaped provide pillow-shaped bags, standing bags, hanging bags, linking bags and etc.
9 . Available with inflatable device enables broad application.
10 . Equipped with a code system enables more credible packaging.
11 . Automatic correct function and intelligent operation save time, labor and film.
12 . External film placing makes simpler and easier installation of packing film.
13 . Multipurpose packaging, suitable for various packaging to similar type of product.
Liquid Packaging Machine Specification
Packing speed
|
5 - 15 Ppm
|
Package weight
|
1000 - 6000g
|
Bag width range
|
150 - 250mm
|
Bag length range
|
200 - 600mm
|
Voltage
|
3 x 380V + N / 50Hz
|
Power
|
1.5Kw + 1.5kw
|
Air source
|
0.6Mpa 0.3M3 / min
|
Packing material
|
PA + PE
|
Whole machine weight
|
650kg
|
Dimensions
|
1500 * 800 * 1550
|
