Since 2006 Professional Manufacturer Of Packing Machinery
Place of Origin: | Foshan |
Brand Name: | Shilong |
Certification: | CE |
Model Number: | SLIV-420 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | 1740*1300*2600mm |
Delivery Time: | 15-25/day |
Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 100 Set/Month |
Measurement Method: | Standard 10-bucket Combination Electronic Scale, 1.6L Hopper | Scope Of Application: | Granule |
---|---|---|---|
Measuring Range: | 2500ml (subject To Actual Materials) | Packing Speed: | 20-60 Bags/minute |
Maximum Width Of Roll Film: | 420mm | Bag Size: | (W): Width 100-200mm(W)mm Length 300mm |
Sealing Category: | Back Seal, Gusset Pillow Bag | Total Power: | 3kw |
Machine Weight: | 600kg | Machine Size: | 1265(L)x1060(W)x1600(H)mm |
Highlight: | hopper packaging machine,100g OatmealA Packaging Machine,10 bucket hopper packing machine |

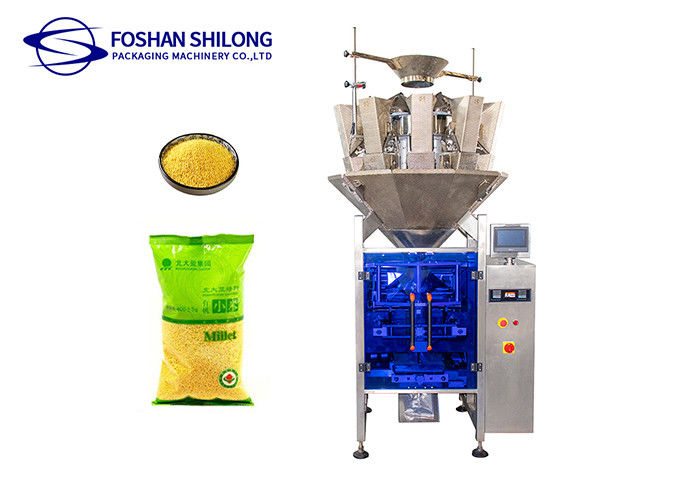

Oatmeal Packaging Machine 1-100g
Main advantages
1. The transverse seal guide axle of the machine is made of bearing steel material refined by special technology, which is super wear-resistant. High accuracy, low noise, easy maintenance.
2. Copper sleeve with sealing ring, oil will not leak, clean and hygienic. All parts of the contact packaging materials are made of stainless steel, which is hygienic and pollution-free.
3. Advanced design of vibration blanking control circuit. Vibration force of 0-9 gears can be adjusted. The noise is obviously less than that of ordinary models. The cutting material is more ideal.
Features
1. 8-station design, can automatically complete a series of processes such as bag taking, bag opening, metering, blanking, sealing, etc.
2. High quality and performance, the frame is made of 1.5mm thickness 304# stainless steel.
3. Intelligent PLC control, fast and stable operation of the machine.
4. The touch screen is used to set packaging parameters, supports multiple languages, and the operation is simple and easy to understand.
5. With electric eye detection function, automatic stop operation without bag.
6. The host adopts a new frame design, which occupies a small area and is easy to detect and maintain.
7. Independent temperature PID controller.
Granule Packaging Machine Specification
Packaging Materials | OPP / CPP OPP / PE NILO / PE PE |
Measurement method | Standard 10 - bucket combination electronic scale, 1.6L hopper |
Scope of application | Granule |
Measuring range | 2500ml ( subject to actual materials ) |
Packing speed | 20 - 60 bags / minute |
Maximum width of roll film | 420mm |
Bag size | (W) : width 100 - 200mm( W ) mm length 300mm |
Sealing category | Back seal , gusset pillow bag |
Total power | 3kw |
Power supply | 220V or 380V50 - 60HZ |
Air pressure and air consumption | 0.65Mpa 0.8m3 / min |
Machine weight | 600kg |
Machine size | 1265 ( L ) x 1060 ( W ) x 1600 ( H ) mm |
Wooden box size | 1740 * 1300 * 2600 |
