Since 2006 Professional Manufacturer Of Packing Machinery
|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||L4280 * W2210 * H3655mm|
|Delivery Time:||15 - 25 / day|
|Payment Terms:||D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||100 Set / Month|
|Bag Size:||W: 80-200mm L: 100-360mm||Packing Speed:||16 - 60 Bags / Minute|
|Machine Size:||L4280 * W2210 * H3655mm||Package Weight:||500g|
Automatic Premade Bag Packaging Machine,
500g stand up bag filling machine,
Salt doypack packing machine

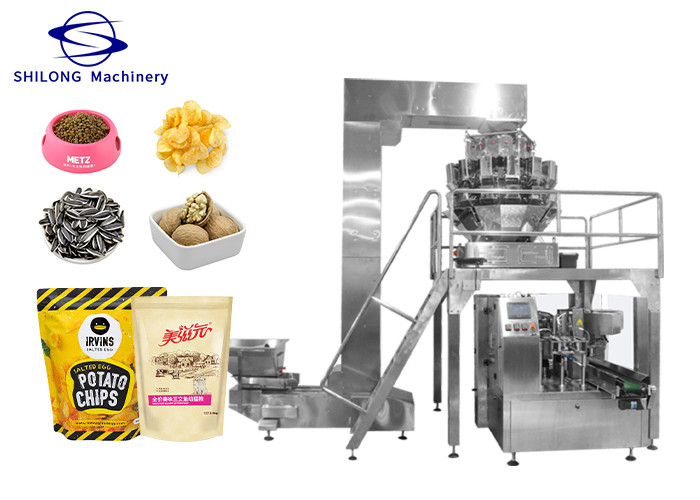

Automatic Premade Stand-Up Bag Doypack Granule Salt Sugar Packing Machine
1. Easy to operate,adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system,the man-machine interface is friendly.
2. Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
3. Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
5. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification.
6. Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food.
1. The first station: give the bag; put the prefabricated bag on the bag bin, the bag can move up and down, when the bag falls, use the suction cup to take the bag, when it rises, use the two suction cups of the robotic arm to turn the bag Workbench manipulator claw.
2. The second station: open the zipper
3. The third station: open the bag; use two suction cups on the upper and lower parts of the bag to open the bag.
4. The fourth station: unloading
5. The fifth station: poke the material
6. The sixth station: the material is stationary
7. The seventh station: double-sided constant temperature sealing 1 (straight pattern)
8. The eighth station: double-sided constant temperature sealing 2 (net pattern)
Premade Bag Packaging Machine Specification
|Bag size||W : 80 - 200mm L : 100 - 360mm|
|Packing speed||16 - 60 bags / minute|
|Machine size||L4280 * W2210 * H3655mm|
